一、 題目及功能要求

1 制作一個電子日歷時鐘使用匯編語言進行軟件編程
2 實現功能
(1) 顯示北京時間并能校準
(2) 時、分、秒之間以及年、月、日之間以小數點隔開
(3) 顯示公歷日期并能校準能夠自動識別“閏年”以及“大月、小月”
(4) 運動秒表能夠后臺計時秒表精確到 0.05S
(5) 鬧鐘功能有鬧鐘開關并能顯示當前鬧鐘是否開啟
(6) 整點報時提醒

二、 硬件方案

1 AT89S52 最小系統
2 顯示電路采用動態掃描驅動電路AT89S52 的 P0 口連接 74LS244 總線驅動器輸
出信號利用三極管 8550 進行放大通過 P1 口對數碼管進行段選掃描AT89S52 的
P1.2~P1.7 口對數碼管進行位選掃描
3 兩個按鍵開關分別接 AT89S52 的兩個外部中斷引腳
4 AT89S52 的 P2.0 口輸出經三極管 9012 放大驅動有源蜂鳴器發聲

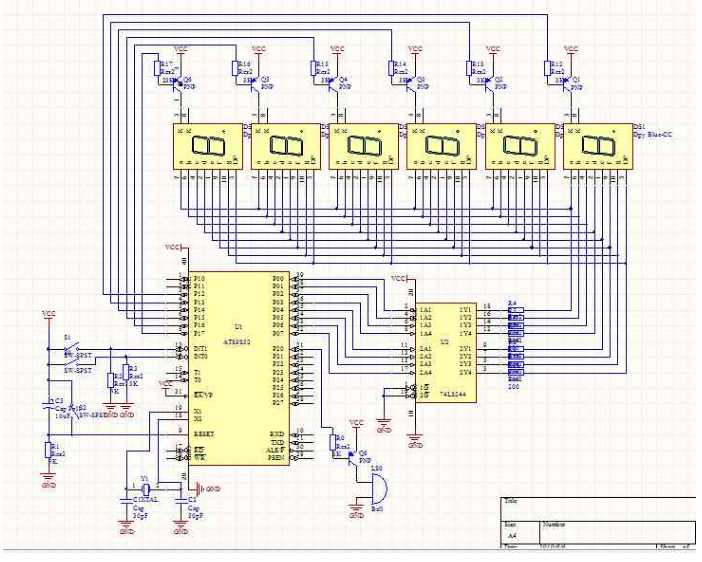

三、 電路原理圖

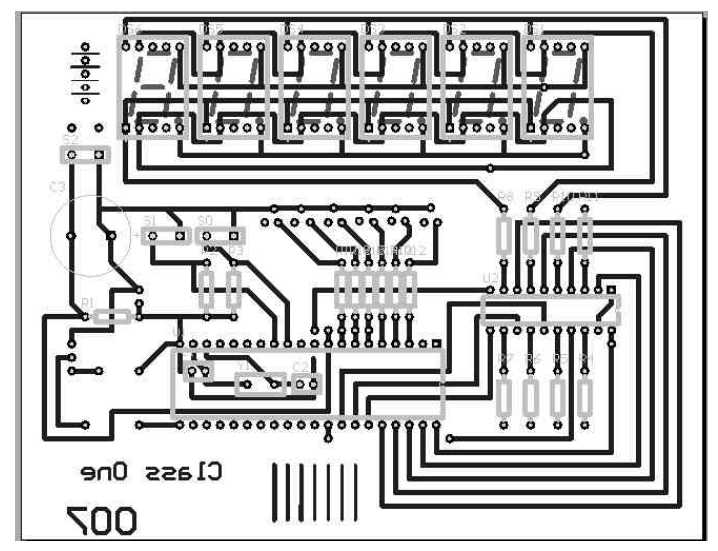

四、 系統元件布局、布線圖

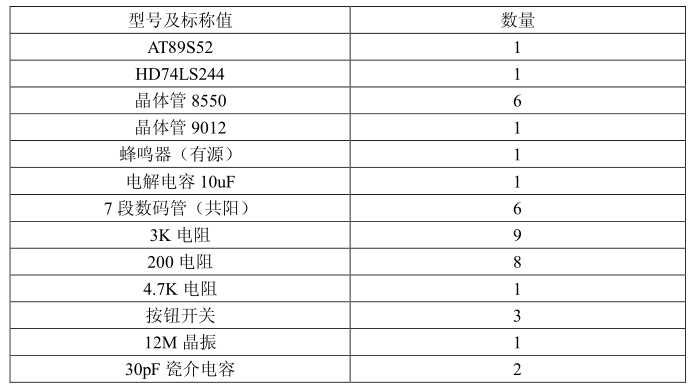

五、 元器件清單



六、 軟件方案

1 “時鐘”基準時間由 AT89S52 定時器 0 中斷提供設置為最高優先級定時器 0
設為工作方式 1即 16 進制計數器方式計數初值設為 15536即可實現 0.05s 中
斷一次連續中斷 20 次即可實現一秒定時。
2 由于使用較多數碼管顯示模塊使用動態掃描方式定義全局變量保存各個數位
的 BCD 碼通過查表將字模送到 P0 口進行輸出為了顯示鬧鐘的狀態設置了
另一字模數據表在顯示前進行判斷若為鬧鐘開關設置狀態則調用此字模數據表。
3 按鍵中斷的時候在 2 個按鍵都沒按下的狀態2 個中斷引腳都為低電平則一直
調用中斷 0 的子程序每次進入中斷 0 子程序中便檢測中斷 1 的引腳是否為高電平
即檢測開關 KEY1 是否按下相反在按下 KEY0 時進入中斷 1 子程序每次進
入中斷 1 子程序都檢測中斷 0 的引腳是否為高電平為高電平則表示已按下。
4 用寄存器 R7 來記錄當前切換的功能分別為0時間1日期2-鬧鐘3-鬧鐘
開關4-秒表。
5 秒表的實現采用基準時鐘作為秒表時鐘源,精度可以達到 0.05s。
6 鬧鐘的實現在主程序中循環判斷鬧鐘設置的時分與當前時分是否相等鬧鐘持
續 1 分鐘
7 整點報時的實現在主程序中先判斷當前時間的秒若為 0 再判斷分再為 0 則
使蜂鳴器嘀一聲循環判斷。

七、 程序框圖

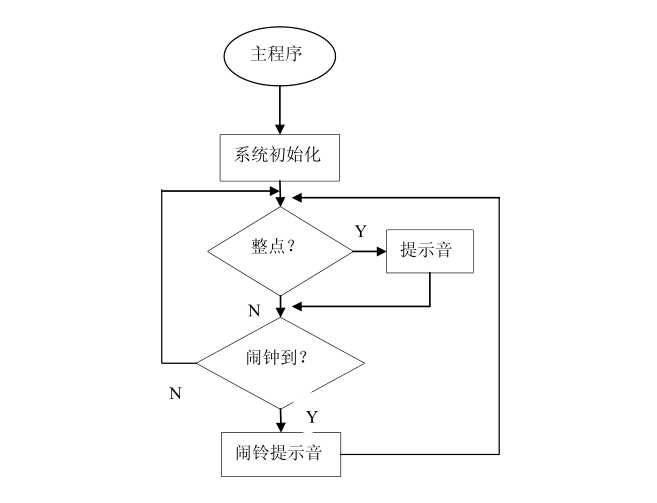

1. 主程序

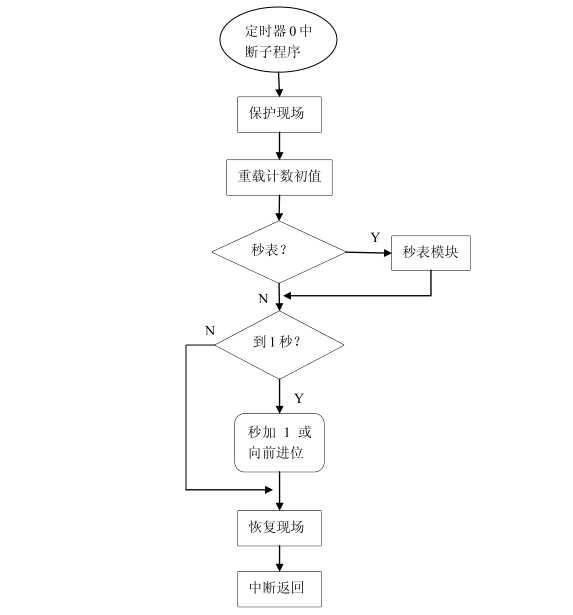

2. 定時器 0 中斷子程序

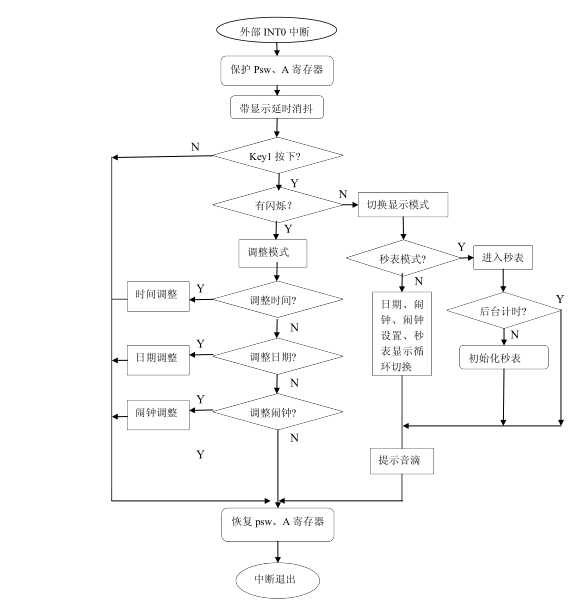

3. 外部中斷 0 子程序

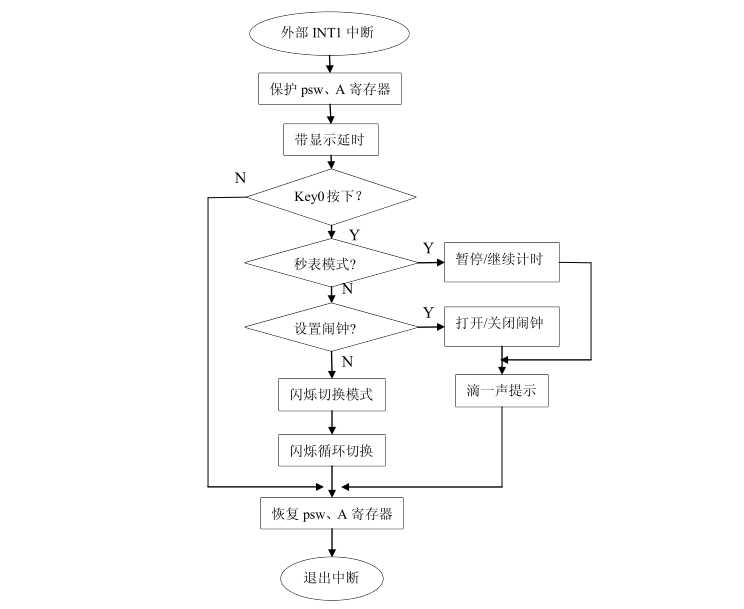

4. 外部中斷 1 子程序


八、 系統使用說明

1 接通電源自動復位讀取初始狀態時鐘--“00.00.00”日期—“10.06.06”鬧鐘
—“06.00.00”鬧鐘狀態—“OFF”秒表—“00.00.00”。
2 按鍵 KEY1 為“切換功能/調節”按鈕按鍵 KEY0 為“確定/計時開始/計時暫停/
鬧鐘開關按鈕
3 第一功能----電子時鐘按 KEY0 鍵進入時校準狀態“時”數碼管閃爍此時按
KEY1 鍵可以調節小時“時”調節范圍為 00~24按 KEY0 可切換到“分”設置
調節范圍為 00~59 再按 KEY0 可切換到“秒”設置 調節范圍為 00~59。
4 第二功能----電子日歷在電子時鐘功能下按 KEY1 可以切換到電子日歷功能。
進入電子日歷功能可以對“年”.“月”.“日”進行校準校準方式同電子時鐘
的校準方式一樣自行摸索。
5 第三功能----鬧鐘設置在電子日歷功能下按 KEY1 可以切換到鬧鐘設置功能。
鬧鐘的設置同電子時鐘的設置一樣。
6 第四功能----鬧鐘開關在鬧鐘設置功能下按 KEY1 可以切換到鬧鐘開關設置。
默認狀態為關閉鬧鐘功能顯示“OFF”按 KEY0 可以調節鬧鐘開關打開鬧鐘
功能則顯示“ON”。鬧鐘設置為“ON”時最后一個數碼管的小數點會亮起可
以在任何功能狀態下提示鬧鐘功能已開啟。
7 第五功能----秒表在鬧鐘設置功能下按 KEY1 可以切換到秒表功能。進入秒表
功能按 KEY0 開始計時再按 KEY0 則暫停計時在秒表計時的時候按 KEY1 可
以切換到其他功能而秒表則在后臺計時在秒表暫停時按 KEY1 可以將秒表清零。

九、 體會

第一次使用Atmel Designer Winter 09布出一個完整的PCB制板圖并用覆銅板做成實
物最大的體會是軟件能畫出來的圖我們不一定就能把這樣的 電路板做出來。布線時
要考慮的因素除整體布局、飛線數目外最重要的是線的寬度、線與線的間距、焊盤的大小。
唯有線寬合適、間距合 理才能做出符合要求的電路板。剛制成的電路板要先使用萬用表檢
測各導線的連接情況解決斷路、短路的問題之后方能進行焊接。這樣做 的好處是保證
了調試程序時不會受硬件接觸不良等情況的影響。
由于第一次嘗試完全使用匯編語言對AT89S52進行編程操作對匯編語言的陌生給前期
編程工作帶來諸多不便。匯編語言不同于C或其它高級 語言程序間的跳轉各種寄存器的
壓棧出棧都需要人工考慮而這種疏漏編譯器也不會給出任何提示于是往往一些大意的疏
忽程序便 無法達到預期的效果。加之沒有相關條件使用在線調試也給故障排除帶來一
些障礙。
對此的體會是確定是程序出現問題時優先往程序間的跳轉條件、重要寄存器等的現
場保護、循環退出的條件方面考慮尋找原因。由于 此次硬件電路設計采用低電平導通的
PNP三極管和74LS244電平驅動器也沒有將IO口做通用數據傳輸口用故不需考慮上拉電
阻的選用及 將相應管腳寫入高電平以正確接收數據的問題。當然在調試的過程中合理的使
用軟件仿真機熟練的設置程序斷點同時觀察單片機各寄存 器值的變化可以極大方便
我們查找程序漏洞解決問題。
在書寫代碼的過程中應該注意代碼的規范化尤其是使用匯編編程時必須加上必要
的注釋方便程序閱讀及故障排查。對于需要使用 到的各個變量必須在程序開頭集中定
義存儲位置以求一目了然在新增變量的時候也不至于出現存儲單元被重復使用而導致數
據丟失的 情況。
最后看著忙碌數日得來的勞動成果乖乖的工作確實蠻有成就感。希望今后有更多的
機會進行這樣的實踐實驗。

十、 附錄

;AT89S52CLOCK_FINAL.asm
; (Electronic Calendar and Clock)
; Reference for Grade 2008, s.c.u.t.
; Key0(for shift/adjust) connected to INT1
; Key1(for un-flash/flash) connected to INT0
; 學生姓名黃錦波黃卓佳
; 學生學號200830240380200830240434
; 分組編號007
;變量定義
TICK_CNT EQU 20H ;T0 倍乘
;------------------
SECOND_BCD EQU 21H ;時間記錄
MINUTE_BCD EQU 22H
HOUR_BCD EQU 23H
;------------------
DAY_BCD EQU 24H ;日期記錄
MONTH_BCD EQU 25H
YEAR_BCD EQU 26H
;------------------
FLASH_FLAG EQU 27H ;是否閃爍
DIS_FLAG EQU R7 ;當前顯示內容標志 ;DIS_FLAG: 0時間1日期;2-鬧鐘3-鬧鐘開
關4-秒表
;------------------
NSECOND_BCD EQU 2BH ;鬧鐘時間
NMINUTE_BCD EQU 2CH
NHOUR_BCD EQU 2DH
;------------------
TCC_BCD EQU 2EH ;秒表計時器
TBB_BCD EQU 2FH
TAA_BCD EQU 30H
;------------------
TIMER_FLAG EQU 31H ;秒表模式
TIMER_START_FLAG EQU 32H ;秒表開始
;------------------
ALAM_STATE EQU 33H ;鬧鐘開啟標志
;------------------
DI_40H EQU 34H ;提示音延時變量
DI_41H EQU 35H ;延時
;------------------
ALAM_ON1 EQU 36H ;鬧鐘狀態顯示
ALAM_ON2 EQU 37H
ALAM_ON3 EQU 38H
ALAM_OFF1 EQU 39H
ALAM_OFF2 EQU 3AH
ALAM_OFF3 EQU 3BH
;------------------
;中斷向量表
ORG 0000H
LJMP MAIN
ORG 0003H
LJMP EX0_INT ; port INT0
ORG 000BH
LJMP T0_INT ; port T0
ORG 0013H
LJMP EX1_INT ; port INT1
;主程序
ORG 0030H
MAIN: NOP ; main program
;初始化堆棧
MOV SP,#60H
;初始化變量
MOV SECOND_BCD,#00H ; BCD of "second"
MOV MINUTE_BCD,#00H ; BCD of "minute"
MOV HOUR_BCD,#00H ; BCD of "hour"
MOV NSECOND_BCD,#00H ; BCD of "second"
MOV NMINUTE_BCD,#00H ; BCD of "minute"
MOV NHOUR_BCD,#06H ; BCD of "hour"
MOV TCC_BCD,#00H ; BCD of "second"
MOV TBB_BCD,#00H ; BCD of "minute"
MOV TAA_BCD,#00H ; BCD of "hour"
MOV TIMER_START_FLAG,#00H ;秒表工作標志
MOV TIMER_FLAG,#00H ;秒表模式標志
MOV DAY_BCD,#06H ; BCD of "day"
MOV MONTH_BCD,#06H ; BCD of "month"
MOV YEAR_BCD,#010H ; BCD of "year"
MOV FLASH_FLAG,#00H ; flag for un-flash/flash
MOV DIS_FLAG,#00H ; flag for shift(time/date)
MOV ALAM_ON1,#55H ; BCD OF 鬧鐘狀態顯示
MOV ALAM_ON2,#01H
MOV ALAM_ON3,#55H
MOV ALAM_OFF1,#63H
MOV ALAM_OFF2,#42H
MOV ALAM_OFF3,#33H
MOV ALAM_STATE,#00H ;初始化鬧鐘狀態為 OFF
;------------------
MOV TL0,#0B0H ; constant for 0.05s
MOV TH0,#3CH ; 65536-15536=50,000 for 12MHz
MOV TICK_CNT,#14H ; times of overflow 0.05*20=1s
MOV TMOD,#01H ; Mode 1 for T0, Timer Mode
SETB ET0 ; open T0
SETB EX0 ; open INT0, Key1
SETB EX1 ; open INT1, Key0
SETB EA ; total open
SETB PT0 ; priority for T0高優先級
SETB TR0 ; start T0, Run
SCAN_HOUR: ;鬧鐘掃描
MOV A,SECOND_BCD
CJNE A,#00H,SCANALARM
MOV A,MINUTE_BCD
CJNE A,#00H,SCANALARM
HOUR:
CLR P2.0
NOP ;整點滴
SETB P2.0
SCANALARM: ;鬧鐘掃描
MOV A,ALAM_STATE
JZ SCAN_HOUR ;鬧鐘開關已打開
MOV A,NHOUR_BCD
CJNE A,HOUR_BCD,WAIT
MOV A,NMINUTE_BCD
CJNE A,MINUTE_BCD,WAIT
ALARM:
CLR P2.0 ;鬧鈴滴滴滴滴``````
SETB P2.0
CLR P2.0
SETB P2.0
CLR P2.0
SETB P2.0
CLR P2.0
SETB P2.0
NOP
NOP
NOP
WAIT:
SETB P2.0
SJMP SCAN_HOUR ; wait for interrupt
; -------------------------------------------------
; sub: T0 interrupt
; 定時器 0 中斷
T0_INT:
PUSH ACC
MOV TL0,#0B0H ; constant for 0.05s
MOV TH0,#3CH ; Timer 0 重裝載
MOV A,TIMER_START_FLAG
CJNE A,#01H,TIMER_NEXT ;秒表模式
LJMP TIMER_INC ;秒表計時
TIMER_NEXT:
DJNZ TICK_CNT,NOT_1S ; is up to 1 second ?
SJMP IS_1S
NOT_1S:
LJMP T0_RET
; 1 秒時間到
IS_1S:
MOV A,SECOND_BCD ; take BCD of "second"
CJNE A,#59H,IN3 ; is up to 59 seconds ?
SJMP IN4
IN3:LJMP SECOND_INC ; 秒加 1
IN4:MOV SECOND_BCD,#00H ; 秒進位
MOV A,MINUTE_BCD ; take BCD of "minute"
CJNE A,#59H,IN5 ; is up to 59 minutes ?
SJMP IN6
IN5: LJMP MINUTE_INC
IN6: MOV MINUTE_BCD,#00H ; 分進位
MOV A,HOUR_BCD ; take BCD of "hour"
CJNE A,#23H,HOUR_INC ; is up to 23 hours ?
MOV HOUR_BCD,#00H ; “時”進位
MOV A,MONTH_BCD ; take BCD of "month"
CJNE A,#02H,NOT_FEB ; is February ?
;2 月處理
;--------------------------
FEB: NOP
ACALL BCD_DIV4 ; BCD of "year in 26H" divided by 4
MOV A,R3 ; remainder in R3
CJNE A,#00H,NOT_LEAP_Y ; "00" means leap year
;閏年29 天
LEAP_Y: MOV A,DAY_BCD ; take BCD of "day" in Feb.
CJNE A,#29H,DAY_INC ; is up to 29 days (leap year)?
MOV DAY_BCD,#01H ; keep the first day
MOV MONTH_BCD,#03H ; increase "month"
SJMP RESET_CNT
;非閏年
NOT_LEAP_Y: MOV A,DAY_BCD ; take BCD of "day" in Feb.
CJNE A,#28H,DAY_INC ; is up to 28 days (common year)?
MOV DAY_BCD,#01H ; keep the first day
MOV MONTH_BCD,#03H ; increase "month"
SJMP RESET_CNT
;---------------------------
;非 2 月處理
;30/31 天
NOT_FEB:NOP ; other "month" except Feb.
CJNE A,#04H,Y01 ; is April ?
AJMP MON_30D
Y01: CJNE A,#06H,Y02 ; is June ?
AJMP MON_30D
Y02: CJNE A,#09H,Y03 ; is September ?
AJMP MON_30D
Y03: CJNE A,#11H,T11 ; is November ?
AJMP MON_30D
;31 天
T11: MOV A,DAY_BCD ; take BCD of "day"
CJNE A,#31H,DAY_INC ; is up to 31 days ?
AJMP NEXT_MONTH
;30 天
MON_30D:MOV A,DAY_BCD ; take BCD of "day"
CJNE A,#30H,DAY_INC ; is up to 30 days ?
;天進位
NEXT_MONTH: MOV DAY_BCD,#01H ; keep the first day
MOV A,MONTH_BCD ; take BCD of "month"
CJNE A,#12H,MONTH_INC; is December ?
; 月進位
MOV MONTH_BCD,#01H ; keep the first month
MOV A,YEAR_BCD ; take BCD of "year"
CJNE A,#99H,YEAR_INC ; is up to 99 years ?
MOV YEAR_BCD,#00H ; keep the first year
SJMP RESET_CNT
;年加 1
YEAR_INC: MOV A,YEAR_BCD ; take BCD of "year"
ADD A,#01H ; increase "year"
DA A ; adjust BCD
MOV YEAR_BCD,A ; keep "year"
SJMP RESET_CNT
MONTH_INC: MOV A,MONTH_BCD ; take BCD of "month"
ADD A,#01H ; increase "month"
DA A ; BCD 碼調整
MOV MONTH_BCD,A ; keep "month"
SJMP RESET_CNT
DAY_INC: MOV A,DAY_BCD ; take BCD of "day"
ADD A,#01H ; increase "day"
DA A ; BCD 碼調整
MOV DAY_BCD,A ; keep "day"
SJMP RESET_CNT
HOUR_INC: MOV A,HOUR_BCD ; take BCD of "hour"
ADD A,#01H ; increase "hour"
DA A ; BCD 碼調整
MOV HOUR_BCD,A ; keep "hour"
SJMP RESET_CNT
MINUTE_INC: MOV A,MINUTE_BCD ; take BCD of "minute"
ADD A,#01H ; increase "minute"
DA A ; BCD 碼調整
MOV MINUTE_BCD,A ; keep "minute"
SJMP RESET_CNT
SECOND_INC: MOV A,SECOND_BCD ; take BCD of "second"
ADD A,#01H ; increase "second"
DA A ; BCD 碼調整
MOV SECOND_BCD,A ; save back "second"
RESET_CNT: MOV TICK_CNT,#14H ; retrieve times of overflow
T0_RET:
POP ACC
RETI
;--------------------------------------------------------------------
;秒表增
TIMER_INC:
TCC_INC:
MOV A,TCC_BCD ; take BCD of "0.05S"
CLR C
SUBB A,#95H
JZ TBB_INC
MOV A,TCC_BCD
ADD A,#05H ; increase "0.05S"
DA A ; BCD 碼調整
MOV TCC_BCD,A ; keep "0.05S"
AJMP TIMER_OUT
TBB_INC:
MOV TCC_BCD,#00H
MOV A,TBB_BCD ; take BCD of "SECOND"
CLR C
SUBB A,#59H
JZ TAA_INC
MOV A,TBB_BCD
ADD A,#01H ; increase "SECOND"
DA A ; BCD 碼調整
MOV TBB_BCD,A ; keep "SECOND"
AJMP TIMER_OUT
TAA_INC:
MOV TBB_BCD,#00H
MOV A,TAA_BCD ; take BCD of "MINUTE"
CLR C
SUBB A,#59H
JZ TDD_INC
MOV A,TAA_BCD
ADD A,#01H ; increase "MINUTE"
DA A ; BCD 碼調整
MOV TAA_BCD,A ; save back "MINUTE"
AJMP TIMER_OUT
TDD_INC:MOV TAA_BCD,00H
TIMER_OUT: LJMP TIMER_NEXT ;返回定時器中斷
;------------------------------------------------------------------
; -------------------------------------------------------------------
; sub: LED Display
;顯示子程序
DISPLAY:
MOV A,DIS_FLAG
CJNE A,#03H,DISPLAY2 ;選擇不同字模
MOV DPTR,#TAB2
SJMP DISPLAY3
DISPLAY2:
MOV DPTR,#TAB ; set address of code table
DISPLAY3:
MOV A,DIS_FLAG ; take flag for shift
CJNE A,#00H,DISP_DATE ; "00" 當前顯示內容為時間
;R0: point to display buffer
DISP_TIME: MOV R0,#SECOND_BCD ; beginning from "second"
SJMP TSA
DISP_DATE:
CJNE A,#01H,DISP_ALAM ; "01" 當前顯示內容為日期
MOV R0,#DAY_BCD ; "FF" for showing date
SJMP TSA;顯示時間或日期
DISP_ALAM:
CJNE A,#02H,DISP_ALAM_SET ; "02" 當前顯示內容為鬧鐘
MOV R0,#NSECOND_BCD ; beginning from "second"
SJMP TSA
DISP_ALAM_SET:
CJNE A,#03H,DISP_TIMER ; "03" 當前顯示內容為鬧鐘設置
MOV A,ALAM_STATE ; 鬧鐘狀態顯示
JZ SHOWOFF
MOV R0,#ALAM_ON1 ; 顯示”ON“
SJMP TSA
SHOWOFF:
MOV R0,#ALAM_OFF1 ;顯示“OFF”
SJMP TSA
DISP_TIMER: ;"04"當前顯示內容為秒表
MOV R0,#TCC_BCD ; beginning from "second"
TSA: MOV A,@R0 ; begin from "day"
ANL A,#0FH ; get the "low half byte"
MOVC A,@A+DPTR ; take character from code table
MOV R1,A ; keep in R1 for DS6 showing
MOV A,@R0
SWAP A
ANL A,#0FH ; get the "high half byte"
MOVC A,@A+DPTR ; take character from code table
MOV R2,A ; keep in R2 for DS5 showing
;---------------
INC R0
MOV A,@R0 ; next one from "month"
ANL A,#0FH ; get the "low half byte"
MOVC A,@A+DPTR
MOV R3,A ; keep in R3 for DS4 showing
MOV A,@R0
SWAP A
ANL A,#0FH ; get the "high half byte"
MOVC A,@A+DPTR
MOV R4,A ; keep in R4 for DS3 showing
;-------------
INC R0
MOV A,@R0 ; next one from "year"
ANL A,#0FH ; get the "low half byte"
MOVC A,@A+DPTR
MOV R5,A ; keep in R5 for DS2 showing
MOV A,@R0
SWAP A
ANL A,#0FH ; get the "high half byte"
MOVC A,@A+DPTR
MOV R6,A ; keep in R6 for DS1 showing
;---------------------
;P1位選線
;P0段選線
NOP
TDP: MOV P1,#0FFH ; close all showing///
;Display DS6
MOV A,ALAM_STATE ;是否顯示鬧鐘狀態位最末位小數點
JZ DIS_NEXT
MOV A,R1
ANL A,#7FH
MOV R1,A
DIS_NEXT:
MOV A,R1
MOV P0,A ; send character to DS6
MOV A,FLASH_FLAG ; get flag of un-flash/flash
CJNE A,#03H,A02 ; "03" is flash on DS5&DS6
SJMP A03
A02: CJNE A,#03H,A04; ; "03" is flash on DS5&DS6
A03: MOV A,TICK_CNT ; take Counter of overflow
RRC A
JNC A05 ; check bit C ( 1 or 0 )
A04: MOV P1,#0FBH ; turn on DS6
A05: LCALL DELAY
MOV P1,#0FFH ; close all showing
;Display DS5
MOV P0,R2 ; send character to DS5
MOV A,FLASH_FLAG ; get flag of un-flash/flash
CJNE A,#03H,B02 ; "03" is flash on DS5&DS6
SJMP B03
B02: CJNE A,#03H,B04
B03: MOV A,TICK_CNT ; take times of overflow
RRC A
JNC B05 ; check bit C ( 1 or 0 )
B04: MOV P1,#0F7H ; turn on DS5
B05: LCALL DELAY
MOV P1,#0FFH ; close all showing
;Display DS4
MOV A,R3
ANL A,#7FH ;該位增加小數點顯示
MOV P0,A ; send character to DS4
MOV A,FLASH_FLAG ; get flag of un-flash/flash
CJNE A,#02H,C02 ; "02" is flash on DS3&DS4
SJMP C03
C02: CJNE A,#02H,C04
C03: MOV A,TICK_CNT ; take times of overflow
RRC A
JNC C05 ; check bit C ( 1 or 0 )
C04: MOV P1,#0EFH ; turn on DS4
C05: LCALL DELAY
MOV P1,#0FFH ; close all showing
;Display DS3
MOV P0,R4 ; send character to DS3
MOV A,FLASH_FLAG ; get flag of un-flash/flash
CJNE A,#02H,D02 ; "02" is flash on DS3&DS4
SJMP D03
D02: CJNE A,#02H,D04
D03: MOV A,TICK_CNT ; take times of overflow
RRC A
JNC D05 ; check bit C ( 1 or 0 )
D04: MOV P1,#0DFH ; turn on DS3
D05: LCALL DELAY
MOV P1,#0FFH ; close all showing
;Display DS2
MOV A,R5
ANL A,#7FH ;該位增加小數點顯示
MOV P0,A ; send character to DS2
MOV A,FLASH_FLAG ; get flag of un-flash/flash
CJNE A,#01H,E02 ; "01" is flash on DS1&DS2
SJMP E03
E02: CJNE A,#01H,E04
E03: MOV A,TICK_CNT ; take times of overflow
RRC A
JNC E05 ; check bit C ( 1 or 0 )
E04: MOV P1,#0BFH ; turn on DS2
E05: LCALL DELAY
MOV P1,#0FFH ; close all showing
MOV P0,R6 ; send character to DS1
MOV A,FLASH_FLAG ; get flag of un-flash/flash
CJNE A,#01H,F02 ; "01" is flash on DS1&DS2
SJMP F03
F02: CJNE A,#01H,F04
F03: MOV A,TICK_CNT ; take times of overflow
RRC A
JNC F05 ; check bit C ( 1 or 0 )
F04: MOV P1,#07FH ; turn on DS1
F05: LCALL DELAY
MOV P1,#0FFH ; close all showing
RET
; -------------------------------------------------------------------
; ----------------------------------------
; sub: delay (1.542ms for 12MHz, 3.084ms for 6MHz)
;延時子程序
D_CNT_2 EQU 28H
D_CNT_1 EQU 29H
DELAY:MOV D_CNT_2,#03H
D_LOOP2: MOV D_CNT_1,#0FFH ;[1]
D_LOOP1: DJNZ D_CNT_1,D_LOOP1 ;[2]
DJNZ D_CNT_2,D_LOOP2 ;[2]
RET
; ----------------------------------------
; ---------------------------------------------------------
;外部中斷 0
; sub: INT0 interrupt
; 處理按鍵 K0,切換時間/日期/鬧鐘/鬧鐘設置/秒表顯示或者調整
EX0_INT: NOP ; switch or adjust with date/time
PUSH ACC
PUSH PSW
LCALL DIS_DELAY ; re-bounce (with LED display)
JNB P3.3,OUT ; check port INT1
;K0 按下
NOP ; inhibit INT1 ( use k0)
;---------------------------------------------------
MOV A,FLASH_FLAG
CJNE A,#00H,JUDGE_MODE ;有閃爍進入調整模式
SET_DIS: ;無閃爍進入設置顯示或秒表模式
CLR P2.0 ;按鍵滴一聲
MOV DI_41H,#19H
DI_LPO:
MOV DI_40H,#0FFH
DI_LP:
DJNZ DI_40H,DI_LP
DJNZ DI_41H,DI_LPO
SETB P2.0
;---------------------------------------------------
MOV A,DIS_FLAG
INC A
MOV DIS_FLAG,A
CJNE A,#04H,CROSSTIMER ;進入秒表
;---------------------------------------------------
TIMER:
MOV TIMER_FLAG,#01H ;進入秒表秒表模式設置為開
LJMP EX0_RET ;退出
;---------------------------------------------------
CROSSTIMER: ;顯示模式切換
CJNE A,#05H,OUT
MOV DIS_FLAG,#00H ;已到 5 需置零
MOV TIMER_FLAG,#00H
MOV A,TIMER_START_FLAG
JNZ OUT ;秒表后臺工作暫停計數時退出則對秒表清零
MOV TCC_BCD,#00H ; BCD of "second" 秒表清零
MOV TBB_BCD,#00H ; BCD of "minute"
MOV TAA_BCD,#00H ; BCD of "hour"
OUT: LJMP EX0_RET ; 退出
;---------------------------------------------------
JUDGE_MODE: ;進入調整模式
MOV A,DIS_FLAG ; 讀取當前顯示內容為時間/日期/秒表/鬧鐘
CJNE A,#00H,JDATE ;是否進入時間調整 00
;---------------------------------------------------
JTIME: ;調整時間
MOV A,FLASH_FLAG ; take flag of un-flash/flash
ADH: CJNE A,#01H,ADM ; "03" for adjusting "hour"
MOV A,HOUR_BCD ; take BCD of "hour"
CJNE A,#23H,JH0 ; is up to 23 hours ?
MOV HOUR_BCD,#00H ; keep the first hour
LJMP JHF
JH0: ADD A,#01H ; increase "hour"
DA A ; adjust BCD
MOV HOUR_BCD,A ; keep "hour"
JHF: LJMP EX0_RET
;-----------------------------------------
ADM: CJNE A,#02H,ADS ; "02" for adjusting "minute"
MOV A,MINUTE_BCD ; take BCD of "minute"
CJNE A,#59H,JM0 ; is up to 59 minutes ?
MOV MINUTE_BCD,#00H ; keep the first minute
LJMP JMF
JM0: ADD A,#01H ; increase "minute"
DA A ; adjust BCD
MOV MINUTE_BCD,A ; keep "minute"
JMF: LJMP EX0_RET
ADS: MOV A,SECOND_BCD ; take BCD of "second"
CJNE A,#59H,JS0 ; is up to 59 seconds ?
MOV SECOND_BCD,#00H ; keep the first second
LJMP JSF
JS0: ADD A,#01H ; increase "second"
DA A ; adjust BCD
MOV SECOND_BCD,A ; keep "second"
JSF: NOP
LJMP EX0_RET
;---------------------------------------------------
JALAM0: LJMP JALAM
JDATE: CJNE A,#01H,JALAM0 ;是否進入日期調整 01
JYY: NOP ; "01 to 06" is in flash
MOV A,FLASH_FLAG
CJNE A,#01H,JMM ; "01" for adjusting "year"
;調節年
MOV A,YEAR_BCD ; take BCD of "year"
CJNE A,#99H,YY0 ; is up to 99 year ?
MOV YEAR_BCD,#00H ; keep the first year
LJMP YYF
YY0: ADD A,#01H ; increase "year"
DA A ; adjust BCD
MOV YEAR_BCD,A ; keep "year"
YYF: LJMP EX0_RET
;---------------------------------------
JMM: CJNE A,#02H,JDD ; "02" for adjusting "month"
;調節月
MOV A,MONTH_BCD ; take BCD of "month"
CJNE A,#12H,MM0 ; is December ?
MOV MONTH_BCD,#01H ; keep the first month
LJMP MMF
MM0: ADD A,#01H ; increase "month"
DA A ; adjust BCD
MOV MONTH_BCD,A ; keep "month"
MMF: LJMP EX0_RET
;---------------------------------------
JDD: CJNE A,#03H,AA1 ; "03" for adjusting "day"
LJMP BB1
AA1: LJMP ADH ;
BB1: MOV A,MONTH_BCD ; first, should take "month"
CJNE A,#02H,NFB ; is February ?
IFB: NOP
ACALL BCD_DIV4 ; BCD of "year in YEAR_BCD" divided by 4
MOV A,R3 ; remainder in R3
CJNE A,#00H,ANG ; "00" means leap year
ARN: MOV A,DAY_BCD ; take BCD of "day"
CJNE A,#29H,D0A ; is up to 29 days in Feb.?
LJMP D0B
D0A: LJMP DDA
D0B: LJMP DD1
ANG: MOV A,DAY_BCD ; take BCD of "day"
CJNE A,#28H,D0A ; is up to 28 days in Feb.?
LJMP DD1
NFB: NOP ; check "little/large" month
CJNE A,#04H,Y04 ; is April ?
LJMP AD1
Y04: CJNE A,#06H,Y05 ; is June ?
LJMP AD1
Y05: CJNE A,#09H,Y06 ; is September ?
LJMP AD1
Y06: CJNE A,#11H,Y07 ; is November ?
LJMP AD1
Y07: NOP ; for "large" month
MOV A,DAY_BCD ; take BCD of "day"
CJNE A,#31H,D0A ; is up to 31 days ?
LJMP DD1
AD1: NOP ; for "little" month
MOV A,DAY_BCD ; take BCD of "day"
CJNE A,#30H,D0A ; is up to 30 days ?
DD1: MOV DAY_BCD,#01H ; keep the first day
LJMP DDF
DDA: ADD A,#01H ; increase "day"
DA A ; adjust BCD
MOV DAY_BCD,A ; keep "day"
DDF: LJMP EX0_RET
;---------------------------------------------------
JALAM: ;調整鬧鐘
MOV A,FLASH_FLAG ; take flag of un-flash/flash
NADH: CJNE A,#01H,NADM ; "03" for adjusting "hour"
MOV A,NHOUR_BCD ; take BCD of "hour"
CJNE A,#23H,NJH0 ; is up to 23 hours ?
MOV NHOUR_BCD,#00H ; keep the first hour
LJMP NJHF
NJH0: ADD A,#01H ; increase "hour"
DA A ; adjust BCD
MOV NHOUR_BCD,A ; keep "hour"
NJHF: LJMP EX0_RET
;-----------------------------------------
NADM: CJNE A,#02H,NADS ; "02" for adjusting "minute"
MOV A,NMINUTE_BCD ; take BCD of "minute"
CJNE A,#59H,NJM0 ; is up to 59 minutes ?
MOV NMINUTE_BCD,#00H ; keep the first minute
LJMP NJMF
NJM0: ADD A,#01H ; increase "minute"
DA A ; adjust BCD
MOV NMINUTE_BCD,A ; keep "minute"
NJMF: LJMP EX0_RET
NADS: MOV A,NSECOND_BCD ; take BCD of "second"
CJNE A,#59H,NJS0 ; is up to 59 seconds ?
MOV NSECOND_BCD,#00H ; keep the first second
LJMP NJSF
NJS0: ADD A,#01H ; increase "second"
DA A ; adjust BCD
MOV NSECOND_BCD,A ; keep "second"
NJSF: NOP
LJMP EX0_RET
;---------------------------------------------------
EX0_RET:NOP ;中斷退出
POP PSW
POP ACC
RETI
;---------------------------------------------------
;---------------------------------------------------
; sub: INT1 interrupt
; 處理按鍵 K1,設置閃爍
EX1_INT:NOP ; revise flag(00 to 06) in FLASH_FLAG
PUSH ACC
PUSH PSW
JNB P3.2,EX1_RET ; check port INT0
LCALL DIS_DELAY ; re-bounce (with LED display)
;;K1 按鍵按下
NOP ; inhibit INT0 (use k1)
MOV A,DIS_FLAG
CJNE A,#03H,TIMER_START0 ;非設置鬧鐘開關模式
MOV A,ALAM_STATE
CPL A ;取非
ANL A,#01H ;保留最后
MOV ALAM_STATE,A ;設置鬧鐘開關
AJMP DI_START ;提示音后退出
;---------------------------------------------------
TIMER_START0:
MOV A,TIMER_FLAG
CJNE A,#01,FLASH_SHIFT ;非秒表模式
TIMER_START:
MOV A,TIMER_START_FLAG
CPL A
ANL A,#01H ;保留最低位
MOV TIMER_START_FLAG,A ;設置秒表開關
;---------------------------------------------------
DI_START:
CLR P2.0 ;按鍵滴一聲
MOV DI_41H,#19H
DI_LOOPO:
MOV DI_40H,#0FFH
DI_LOOP:
DJNZ DI_40H,DI_LOOP
DJNZ DI_41H,DI_LOOPO
SETB P2.0
AJMP EX1_RET ;退出
;---------------------------------------------------
FLASH_SHIFT: ;進入切換閃爍
MOV A,FLASH_FLAG ; take flag of un-flash/flash
CJNE A,#00H,ED1 ; "00" 無閃爍
MOV FLASH_FLAG,#01H ; 設置 1,2 號數碼管閃爍
SJMP EX1_RET
ED1: CJNE A,#01H,ED2 ; "01" 1,2 號閃爍中
MOV FLASH_FLAG,#02H ; 設置 3,4 號閃爍
SJMP EX1_RET
ED2: CJNE A,#02H,ED3 ; "02" 3,4 號閃爍
MOV FLASH_FLAG,#03H ; 設置 5,6 號閃爍
SJMP EX1_RET
ED3: MOV FLASH_FLAG,#00H ; 關閉所有閃爍
EX1_RET:NOP
POP PSW
POP ACC
RETI
;------------------------------------
; ---------------------------------------------
; 帶顯示延遲
D_CNT_DIS EQU 2AH
DIS_DELAY: MOV D_CNT_DIS,#10H ; or(#0BH)
DELAY_LOOP: LCALL DISPLAY ; with LED display
DJNZ D_CNT_DIS,DELAY_LOOP
RET
; -----------------------------------------------
; ----------------------------------------------------------
; sub: BCD division
; BCD 除法除 4
; 輸出
; R3: 余數
; R2: 商
BCD_DIV4: MOV R0,YEAR_BCD ; dividend in BCD
MOV R1,#04H ; divider in BCD
MOV R2,#00H ; R2輸出商
MOV A,R1
CPL A
ADD A,#9BH
MOV R1,A ; R1BCD 補碼
MOV A,R0
ANL A,#0F0H ; BCD 高位
SWAP A
LP0: MOV R3,A ; BCD 碼的余數
ADD A,R1
DA A
JNC LP1
INC R2
SJMP LP0
LP1: MOV A,R3
SWAP A
MOV R3,A
MOV A,R2
SWAP A
MOV R2,A ; 商的高位
MOV A,R0
ANL A,#0FH ; 年 BCD 的低位
ORL A,R3
LP2: MOV R3,A
ADD A,R1
DA A
JNC LP3
INC R2
SJMP LP2
LP3: NOP ; no rounding
RET
;----------------------------------------------
; ------------------------------------------------------
; 放在代碼段的字模表
TAB:
DB 0c0H ; for "0"
DB 0f9H ; for "1"
DB 0a4H ; for "2"
DB 0b0H ; for "3"
DB 99H ; for "4"
DB 92H ; for "5"
DB 82H ; for "6"
DB 0f8H ; for "7"
DB 80H ; for "8"
DB 90H ; for "9"
TAB2: ;鬧鐘狀態顯示的字模
DB 0C0H ; "0"
DB 11001000B ; "N"
DB 10001110B ; "F"
DB 0FFH ; " "
DB 40H ; "0."
DB 07FH ; "."
DB 00001110B ; "F."
END
